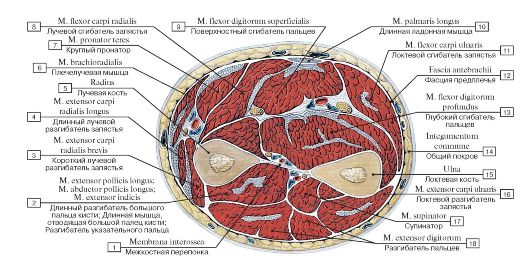

Рис. 439. Поперечный распил предплечья на уровне средней трети:

1 - Interosseous membrane; 2 - Extensor pollicis longus; Abductor pollicis longus; Extensor indicis; 3 - Extensor carpi radialis brevis; 4 - Extensor carpi radialis longus; 5 - Radius; 6 - Brachioradialis; 7 - Pronator teres; 8 - Flexor carpi radialis; 9 - Flexor digitorum superficialis; 10 - Palmaris longus; 11 - Flexor carpi ulnaris; 12 - Antebrachial fascia; 13 - Flexor digitorum profundus; 14 - The integument; 15 - Ulna; 16 - Extensor carpi ulnaris; 17 - Supinator; 18 - Extensor digitorum

Рис. 440. Поперечный распил предплечья на уровне нижней трети:

1 - Abductor pollicis longus; 2 - Extensor digitorum; 3 - Radius; 4 - Extensor carpi radialis brevis; 5 - Anterior interosseous nerve; 6 - Extensor carpi radialis longus; 7 - Pronator teres; 8 - Radial nerve; 9 - Brachioradialis; 10 - Radial artery; 11 - Flexor pollicis longus; 12 - Median nerve; 13 - Flexor carpi radialis; 14 - Palmaris longus; Tendon; 15 - Median antebrachial vein; Median vein of forearm; 16 - Flexor digitorum superficialis; 17 - Flexor carpi ulnaris; 18 - Ulnar artery; 19 - Ulnar nerve; 20 - Flexor digitorum profundus; 21 - Ulna; 22 - Extensor pollicis longus; 23 - Extensor carpi ulnaris; 24 - Posterior interosseous nerve; 25 - Extensor digiti minimi; 26 - Interosseous membrane



Рис. 441. Поперечный распил предплечья на уровне дистального лучелоктевого сочленения:

1 - Extensor retinaculum; 2 - Basilic vein; 3 - Extensor pollicis longus; Tendon; 4 - Subcutaneous tissue; 5 - Antebrachial fascia; 6 - Radius; 7 - Extensor carpi radialis longus; Tendon; Extensor carpi radialis brevis; Tendon; 8 - Brachioradialis; Tendon; 9 - Extensor pollicis brevis; Tendon; 10 - Cephalic vein; Radial nerve, superficial branch; 11 - Abductor pollicis longus; Tendon; 12 - Lateral cutaneous nerve of forearm; Lateral antebrachial cutaneous nerve; Musculocutaneous nerve; 13 - Radial artery; 14 - Flexor pollicis longus; Tendon; 15 - Flexor carpi radialis; Tendon; 16 - Median nerve; 17 - Median nerve, palmar branch; 18 - Flexor digitorum superficialis; Tendon; 19 - Palmaris longus; Tendon; 20 - Skin; 21 - Antebrachial fascia; 22 - Flexor digitorum superficialis; 23 - Ulnar artery; Ulnar nerve; 24 - Flexor digitorum profundus; 25 - Flexor carpi ulnaris; 26 - Ulnar nerve, dorsal branch; 27 - Pronator quadratus; 28 - Distal radio-ulnar joint, sacciform recess; 29 - Ulna; 30 - Extensor carpi ulnaris; Tendon; 31 - Distal radio-ulnar joint; 32 - Extensor digiti minimi; 33 - Extensor

indicis; 34 - Extensor digitorum

Рис. 442. Схема поперечного распила предплечья на уровне дистального лучелоктевого сочленения:

1 - Radius; 2 - Abductor pollicis longus; 3 - Extensor carpi radialis brevis; 4 - Dorsal tubercle; 5 - Extensor retinaculum; 6 - Extensor carpi radialis longus; 7 - Extensor pollicis brevis; 8 - Extensor pollicis longus; 9 - Extensor pollicis longus; 10 - Extensor digiti minimi; 11 - Extensor carpi ulnaris; 12 - Ulna; 13 - Extensor digitorum

Рис. 443. Поперечный распил кисти на уровне дистального ряда костей запястья:



I - Extensor carpi radialis longus; Tendon; 2 - Radial artery; 3 - Cephalic vein; 4 - Extensor pollicis brevis; Tendon; 5 - Abductor pollicis longus; Tendon; 6 - Trapezium; 7 - Flexor carpi radialis; Tendon; 8 - Thenar eminence; 9 - Flexor pollicis longus; Tendon; 10 - Median nerve;

II - Flexor retinaculum; 12 - Palmaris longus; Tendon; 13 - Ulnar artery; Ulnar nerve; 14 - Hypothenar eminence; 15 - Flexor digitorum superficialis; Tendon; 16 - Triquetrum; 17 - Extensor carpi ulnaris; Tendon; 18 - Hamate; 19 - Extensor digiti minimi; Tendon; 20 - Basilic vein; 21 - Capitate; 22 - Extensor digitorum; Tendon; 23 - Extensor indicis; Tendon; 24 - Trapezoid; 25 - Extensor pollicis longus; Tendon

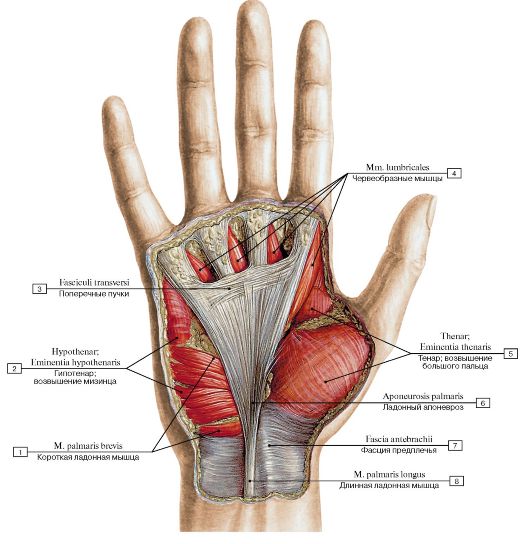

Рис. 444. Ладонный апоневроз, фасция предплечья, правого:

1 - Palmaris brevis; 2 - Hypothenar eminence; 3 - Transversal cord; 4 - Lumbricals; 5 - Thenar eminence; 6 - Palmar aponeurosis;

7 - Antebrachial fascia; 8 - Palmaris longus

Рис. 445. Ладонный апоневроз, правая кисть:

1 - Flexor digitorum superficialis; 2 - Palmaris longus; Tendon; 3 - Flexor carpi ulnaris; Tendon; 4 - Flexor retinaculum; 5 - Palmar aponeurosis; 6 - Palmaris brevis; 7 - Longitudinal bands; 8 - Flexor digiti minimi brevis; 9 - Abductor digiti minimi; 10 - Transversal cord; 11 - Lumbricals; 12 - Deep transverse metacarpal ligament; 13 - Superficial transverse metacarpal ligament; 14 - Oblique ligaments; 15 - Anular ligaments; 16 - Dorsal interossei; 17 - Adductor pollicis, oblique head; 18 - Abductor pollicis brevis; 19 - Flexor pollicis brevis, superficial head; 20 - Opponens pollicis; 21 - Antebrachial fascia; 22 - Flexor pollicis longus; Tendon; 23 - Flexor carpi radialis

Рис. 446. Мышцы ладонной поверхности кисти, правой:

1 - Flexor pollicis longus; 2 - Flexor digitorum superficialis; 3 - Flexor carpi ulnaris; 4 - Abductor digiti minimi; 5 - Flexor digiti minimi brevis; 6 - Opponents digiti minimi; 7 - Flexor digitorum superficialis; Tendon; 8 - Lumbricals; 9 - Deep transverse metacarpal ligament; 10 - Flexor digitorum profundus; Tendon; 11 - Dorsal interosseus [I]; 12 - Flexor pollicis longus; Tendon; 13 - Adductor pollicis, transverse head; 14 - Adductor pollicis, oblique head; 15 - Flexor pollicis brevis, superficial head; 16 - Abductor pollicis brevis; 17 - Opponens pollicis; 18 - Abductor pollicis longus; 19 - Flexor retinaculum; 20 - Pronator quadratus; 21 - Flexor carpi radialis



Рис. 447. Поверхностные мышцы кисти, правой, ладонная сторона:

1 - Flexor digitorum superficialis; 2 - Flexor carpi ulnaris; Tendon; 3 - Antebrachial fascia; 4 - Pisiform; 5 - Palmaris brevis; 6 - Abductor digiti minimi; 7 - Flexor digiti minimi brevis; 8 - Opponens digiti minimi; 9 - Lumbricals; 10 - Fibrous sheath digiti minimi; 11 - Flexor digitorum profundus; Tendon; 12 - Dorsal interosseus [I]; 13 - Adductor pollicis; 14 - Flexor pollicis brevis; 15 - Abductor pollicis brevis; 16 - Flexor retinaculum; 17 - Abductor pollicis longus; Tendon; 18 - Flexor pollicis longus

Рис. 448. Мышцы кисти, правой, ладонная сторона:

1 - Pronator quadratus; 2 - Flexor carpi ulnaris; Tendon; 3 - Pisiform; 4 - Flexor retinaculum; 5 - Opponens digiti minimi; 6 - Palmar interossei; 7 - Dorsal interossei; 8 - Lumbrical; 9 - Transverse fascicles; 10 - Flexor digitorum superficialis; Tendon; 11 - Flexor digitorum profundus; Tendon; 12 - Vincula tendinum; 13 - Tendinous chiasm; 14 - Fibrous sheath; 15 - Adductor pollicis, transverse head; 16 - Adductor pollicis, oblique head; 17 - Flexor pollicis longus; Tendon; 18 - Abductor pollicis brevis; 19 - Flexor pollicis brevis; 20 - Opponens pollicis; 21 - Flexor carpi radialis; Tendon; 22 - Flexor pollicis longus

Рис. 449. Мышцы ладонной поверхности кисти, правой (удерживатель сгибателей частично удален):

1 - Flexor digitorum profundus; 2 - Ulna; 3 - Flexor retinaculum; 4 - Flexor carpi ulnaris; Tendon; 5 - Flexor pollicis brevis, superficial head; 6 - Abductor digiti minimi; 7 - Flexor digiti minimi brevis; 8 - Opponens digiti minimi; 9 - Lumbricals; 10 - Flexor digitorum profundus; Tendon; 11 - Flexor digitorum superficialis; Tendon; 12 - Dorsal interosseus [I]; 13 - Flexor pollicis longus; Tendon; 14 - Adductor pollicis, transverse head; 15 - Adductor pollicis, oblique head; 16 - Opponens pollicis; 17 - Abductor pollicis brevis; 18 - Abductor pollicis longus; Tendon; 19 - Extensor pollicis brevis; 20 - Flexor carpi radialis; Tendon; 21 - Radius; 22 - Flexor pollicis longus



Рис. 450. Мышцы возвышения большого пальца и межкостные мышцы кисти, правой:

1 - Interosseous membrane of forearm; 2 - Ulna; 3 - Carpal tunnel; 4 - Flexor carpi ulnaris; Tendon; 5 - Abductor digiti minimi; 6 - Flexor digiti minimi brevis; 7 - Opponens digiti minimi; 8 - Palmar interossei [II, III]; 9 - Lumbricals; 10 - Flexor digitorum superficialis; Tendon; 11 - Flexor digitorum profundus; Tendon; 12 - Adductor pollicis, transverse head; 13 - Adductor pollicis, oblique head; 14 - Flexor pollicis brevis, deep head; 15 - Flexor pollicis longus; Tendon; 16 - Flexor pollicis brevis, superficial head; 17 - Abductor pollicis brevis; 18 - Opponens pollicis; 19 - Abductor pollicis brevis; 20 - Abductor pollicis longus; Tendon; 21 - Extensor pollicis brevis; 22 - Flexor carpi radialis; Tendon; 23 - Flexor retinaculum; 24 - Radius

Рис. 451. Мышцы возвышений большого пальца и мизинца правой кисти:

1 - Lunate; 2 - Hamate; 3 - Pisiform; 4 - Triquetrum; 5 - Hook of hamate; 6 - Abductor digiti minimi; 7 - Flexor digiti minimi brevis; 8 - Opponens digiti minimi; 9 - Metacarpal [V]; 10 - Proximal phalanx, base of phalanx; 11 - Adductor pollicis, transverse head; 12 - Distal phalanx [I]; 13 - Proximal phalanx [I]; 14 - Adductor pollicis, oblique head; 15 - Head of metacarpal [I]; 16 - Abductor pollicis brevis; 17 - Flexor pollicis brevis, superficial head; 18 - Opponens pollicis; 19 - Trapezium; 20 - Capitate; 21 - Scaphoid; 22 - Base of metacarpal [III]

Рис. 452. Червеобразные мышцы кисти, правой:

1 - Ulna; 2 - Pisiform; 3 - Hook of hamate; 4 - Head of phalanx; 5 - Shaft of phalanx; Body of phalanx; 6 - Base of phalanx; 7 = 4 + 5 + 6 - Distal phalanx [II]; 8 - Middle phalanx [II]; 9 - Proximal phalanx [II]; 10 - Metacarpal [II]; 11- Lumbricals; 12 - Trapezoid; 13 - Radius; 14 - Flexor digitorum profundus; Tendon



Рис. 453. Места начала и прикрепления червеобразных и межкостных мышц кисти, правой:

1 - Flexor digitorum profundus; Tendon;

2 - Lumbricals; 3 - Dorsal interossei;

4 - Palmar interossei

Рис. 454. Межкостные мышцы ладонной поверхности кисти, правой:

1 - Ulna; 2 - Carpal tunnel; 3 - Flexor carpi ulnaris; Tendon; 4 - Abductor digiti minimi; 5 - Flexor digiti minimi brevis; 6 - Opponens digiti minimi; 7- Palmar interossei [I-III]; 8 - Adductor pollicis, transverse head; 9 - Dorsal interossei; 10 - Lumbricals; 11 - Palmar ligaments; 12 - Adductor pollicis, oblique head; 13 - Flexor pollicis brevis, deep head; 14 - Flexor pollicis brevis, superficial head; 15 - Abductor pollicis brevis; 16 - Opponens pollicis; 17 - Extensor pollicis brevis; 18 - Abductor pollicis longus; Tendon; 19 - Flexor carpi radialis; Tendon;

20 - Flexor retinaculum; 21 - Radius

Рис. 455. Межкостные мышцы кисти, правой (А - ладонные, Б - тыльные):

1 - Metacarpals [II-V]; 2 - Palmar interosseus [II]; 3 - Palmar interosseus [IV]; 4 - Palmar interosseus [V]; 5 - Dorsal interossei; 6 - Proximal phalanx

Рис. 456. Тыльные (А) и ладонные (Б) межкостные мышцы кисти, правой:

1 - Abduction; 2 - Dorsal interossei; 3 - Adduction; 4 - Palmar interossei

Рис. 457. Места начала и прикрепления мышц ладонной поверхности кисти, правой:

1 - Ulna; 2 - Flexor pollicis brevis; 3 - Adductor pollicis; 4 - Flexor carpi ulnaris; 5 - Abductor digiti minimi; 6 - Extensor carpi ulnaris; 7 - Flexor digiti minimi brevis; 8 - Opponens digiti minimi; 9 - Palmar interossei; 10 - Interossei; 11 - Flexor digitorum superficialis; 12 - Flexor digitorum profundus; 13 - Flexor pollicis longus; 14 - Flexor pollicis brevis; Abductor pollicis brevis; 15 - Dorsal interossei; 16 - Flexor carpi radialis; 17 - Opponens pollicis; 18 - Abductor pollicis longus; 19 - Abductor pollicis brevis; 20 - Radius



Рис. 458. Места начала и прикрепления мышц возвышений большого и малого пальцев:

1 - Abductor digiti minimi; 2 - Flexor digiti minimi brevis; 3 - Opponens digiti minimi; 4 - Adductor pollicis; 5 - Flexor pollicis brevis; 6 - Opponens pollicis; 7 - Abductor pollicis brevis

Рис. 459. Места начала и прикрепления червеобразных и межкостных мышц кисти:

1 - Lumbricals; 2 - Dorsal interossei; 3 - Palmar interossei

Рис. 460. Удерживатель разгибателей и сухожилия мышц-разгибателей кисти, правой, вид сзади:

1 - Extensor carpi radialis longus; Tendon; 2 - Brachioradialis; Tendon; 3 - Abductor pollicis longus; Tendon; 4 - Extensor pollicis longus; Tendon; 5 - Extensor carpi radialis brevis; Tendon; 6 - Extensor carpi radialis longus; Tendon; 7 - Dorsal interosseus [I]; 8 - Dorsal interosseus [II]; 9 - Intertendinous connections; 10 - Dorsal interosseus [IV]; 11 - Abductor digiti minimi; 12 - Dorsal interosseus [III]; 13 - Extensor indicis; Tendon; 14 - Extensor retinaculum; 15 - Extensor digitorum; 16 - Extensor carpi ulnaris; 17 - Extensor digiti minimi;

18 - Extensor pollicis brevis

Рис. 461. Тыльные межкостные мышцы кисти, правой, вид сзади, сухожилия разгибателей удалены:

1 - Extensor pollicis brevis; 2 - Abductor pollicis longus; 3 - Extensor carpi radialis longus; 4 - Extensor carpi radialis brevis; 5 - Extensor pollicis longus; Tendon; 6 - Trapezoid; 7 - Dorsal interossei; 8 - Adductor pollicis; 9 - Tendinous sheath of flexor pollicis longus; 10 - Lumbricals; 11 - Tendinous sheath of extensor digitorum and extensor indicis; 12 - Tendinous sheath of extensor digiti minimi brevis; 13 - Dorsal interossei; 14 - Abductor digiti minimi; 15 - Capitate; 16 - Extensor carpi ulnaris

Рис. 462. Сухожилия сгибателей и разгибателей пальцев кисти, левой:



1 - Extensor pollicis brevis; 2 - Abductor pollicis longus; 3 - Extensor pollicis brevis; 4 - Extensor pollicis longus; 5 - Extensor carpi radialis longus; 6 - Extensor carpi radialis longus; 7 - Extensor digitorum; 8 - Extensor indicis; 9 - Intertendinous connections; 10 - Dorsal interosseus; 11 - Fibrous sheaths of digits of hand; 12 - Capsule of interphalangeal joint; 13 - Lumbrical [I]; 14 - Interosseus [I]; 15 - Vincula

tendinum; 16 - Adductor pollicis

Рис. 463. Места прикрепления сухожилий на фалангах пальцев (А - вид сверху, Б - поперечный распил на уровне головки пястной кости):

1 - Metacarpal; 2 - Lumbricals; 3 - Central cord; 4 - Lateral cord; 5 - Distal phalanx; 6 - Deep transverse metacarpal ligament; 7 - Dorsal interossei; 8 - Extensor digitorum; Tendon; 9 - Flexor digitorum superficialis; Tendon; 10 - Collateral ligaments; 11 - Dorsal interosseus; 12 - Anular ligament; 13 - Flexor digitorum profundus; Tendon

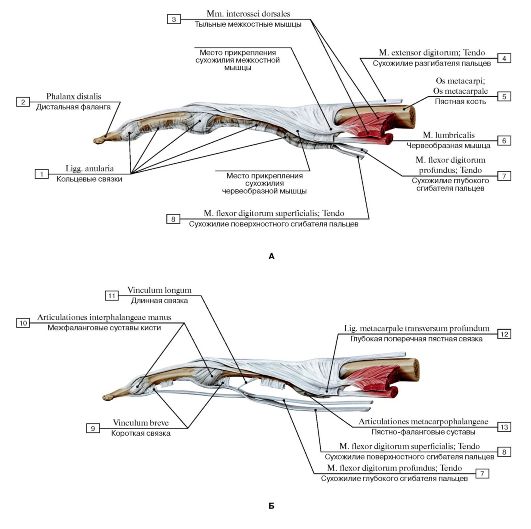

Рис. 464. Места прикрепления сухожилий на фалангах пальцев (А - лучевая сторона, Б - то же, после удаления синовиального влагалища мышц-сгибателей пальцев):

1 - Anular ligaments; 2 - Distal phalanx; 3 - Dorsal interossei; 4 - Extensor digitorum; Tendon; 5 - Metacarpal; 6 - Lumbrical; 7 - Flexor digitorum profundus; Tendon; 8 - Flexor digitorum superficialis; Tendon; 9 - Vinculum breve; 10 - Interphalangeal joints of hand; 11 - Vinculum longum; 12 - Deep transverse metacarpal ligament; 13 - Metacarpophalangeal joints

Рис. 465. Места начала и прикрепления мышц на тыльной стороне кисти, правой:

1 - Extensor carpi radialis longus; 2 - Abductor pollicis longus; 3 - Adductor pollicis; 4 - Extensor pollicis brevis; 5 - Extensor pollicis longus; 6 - Dorsal and Palmar interossei; 7 - Extensor digitorum; 8 - Extensor indicis; 9 - Extensor digiti minimi; 10 - Abductor digiti minimi; 11 - Opponens digiti minimi; 12 - Dorsal interossei; 13 - Extensor carpi ulnaris; 14 - Extensor carpi radialis brevis



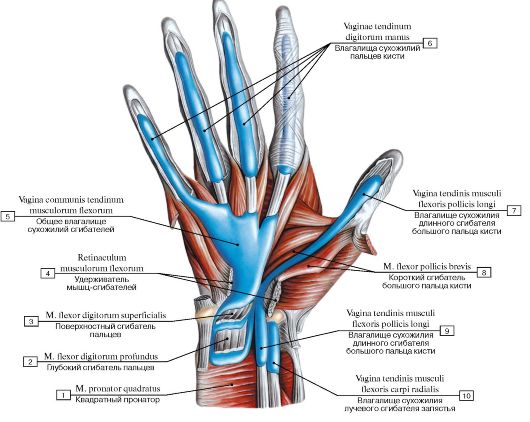

Рис. 466. Запястный канал и синовиальные влагалища мышц-сгибателей кисти, правой:

I - Flexor digitorum superficialis; 2 - Flexor carpi ulnaris; 3 - Common flexor sheath; 4 - Opponens digiti minimi; 5 - Flexor digiti minimi brevis; 6 - Abductor digiti minimi; 7 - Lumbricals; 8 - Oblique ligaments; 9 - Flexor digitorum profundus; 10 - Anular ligaments;

II - Flexor pollicis longus; 12 - Dorsal interosseus [I]; 13 - Adductor pollicis, transverse head; 14 - Adductor pollicis, oblique head; 15 - Flexor pollicis brevis, superficial head; 16 - Abductor pollicis brevis; 17 - Opponens pollicis; 18 - Flexor retinaculum; 19 - Pronator

quadratus; 20 - Flexor pollicis longus; 21 - Flexor carpi radialis

Рис. 467. Варианты строения синовиальных влагалищ мышц-сгибателей (А - 90%; Б - 5%; В - <1%, Г - <1%)

Рис. 468. Синовиальные влагалища сухожилий сгибателей кисти, правой, вид спереди:

1 - Pronator quadratus; 2 - Flexor digitorum profundus; 3 - Flexor digitorum superficialis; 4 - Flexor retinaculum; 5 - Common flexor sheath; 6 - Tendinous sheaths of digits of hand; 7 - Tendinous sheath of flexor pollicis longus; 8 - Flexor pollicis brevis; 9 - Tendinous sheath

of flexor carpi radialis

Рис. 469. Синовиальные влагалища сухожилий мышц-разгибателей пальцев кисти, правой, вид сзади:

1 - Extensor retinaculum; 2 - Tendinous sheath of extensor pollicis longus; 3 - Tendinous sheath of abductor longus and extensor pollicis brevis; 4 - Intertendinous connections; 5 - Tendinous sheath of extensor digiti minimi brevis; 6 - Tendinous sheath of extensor digitorum and extensor indicis; 7 - Tendinous sheath of extensor carpi ulnaris

Рис. 470. Фасциальные образования кисти, правой:

1 - Antebrachial fascia; 2 - Ulnar artery; 3 - Ulnar nerve; 4 - Pisiform; 5 - Hypothenar eminence; 6 - Palmar metacarpal ligaments; 7 - Extensor digitorum; Tendon; 8 - Metacarpals [I-V]; 9 - Flexor digitorum profundus; Tendon; 10 - Flexor digitorum superficialis; Tendon; 11 - Palmar aponeurosis; 12 - Lumbricals; 13 - Proper palmar digital nerves; 14 - Tendon sheath; 15 - Proximal phalanx; 16 - Aponeurosis dorsalis; 17 - Carpal tunnel; 18 - Thenar eminence; 19 - Flexor retinaculum; 20 - Palmaris longus; Tendon; 21 - Median



nerve; 22 - Flexor carpi radialis; Tendon

Рис. 471. Поперечный распил кисти, правой, на уровне запястья:

1 - Extensor indicis; 2 - Extensor digitorum; Tendon; 3 - Extensor digiti minimi; Tendon; 4 - Basilic vein; 5 - Extensor carpi ulnaris; Tendon; 6 - Flexor digitorum profundus; Tendon; 7 - Flexor digitorum superficialis; Tendon; 8 - Ulnar nerve; 9 - Ulnar artery; 10 - Palmaris longus; Tendon; 11 - Little finger; 12 - Ring finger; 13 - Middle finger; 14 - Index finger; 15 - Flexor retinaculum; 16 - Median nerve; 17 - Thumb; 18 - Thenar eminence; 19 - Flexor carpi radialis; Tendon; 20 - Flexor pollicis longus; Tendon; 21 - Abductor pollicis longus; Tendon; 22 - Extensor pollicis brevis; Tendon; 23 - Cephalic vein; 24 - Radial artery; 25 - Extensor pollicis longus; Tendon; 26 - Extensor carpi radialis longus; Tendon; 27 - Extensor carpi radialis brevis; Tendon

Рис. 472. Поперечный распил кисти, правой, на уровне начала пясти:

I - Metacarpal [III]; 2 - Dorsal interosseus [II]; 3 - Palmar interosseus [I]; 4 - Metacarpal [II]; 5 - Palmar metacarpal arteries; 6 - Dorsal interosseus [I]; 7 - Adductor pollicis; 8 - Extensor pollicis longus; Tendon; Tendon sheath; 9 - Extensor pollicis brevis; 10 - Metacarpal [I];

II - Opponens pollicis; 12 - Abductor pollicis longus; 13 - Flexor pollicis brevis, deep head; 14 - Flexor pollicis longus; Tendon; Tendon sheath; 15 - Flexor pollicis brevis, superficial head; 16 - Lumbricals; 17 - Common plantar digital arteries; Median nerve; 18 - Flexor digitorum superficialis; Tendon; 19 - Abductor digiti minimi; 20 - Opponens digiti minimi; 21 - Metacarpal [V]; 22 - Flexor digitorum profundus; Tendon; 23 - Extensor digiti minimi; 24 - Palmar interosseus [III]; 25 - Dorsal interosseus [IV]; 26 - Metacarpal [IV]; 27 - Palmar



interosseus [II]; 28 - Dorsal interosseus [III]; 29 - Extensor digitorum; Tendon

Рис. 473. Поперечный распил кисти, правой, на уровне середины пясти, фасции и фасциальные влагалища кисти:

1 - Dorsal fascia of hand; 2 - Dorsal subfascial space; 3 - Dorsal interosseus [II]; 4 - Dorsal interosseus [I]; 5 - Proximal phalanx [I]; 6 - Flexor pollicis longus; Tendon; 7 - Lumbricals [I, II]; 8 - Palmar aponeurosis; 9 - Abductor digiti minimi; 10 - Metacarpals [III, IV, V]

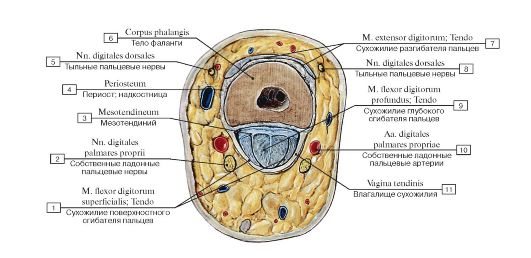

Рис. 474. Поперечный распил пальца на уровне проксимальной фаланги:

1 - Flexor digitorum superficialis; Tendon; 2 - Proper palmar digital nerves; 3 - Mesotendon; 4 - Periosteum; 5 - Dorsal digital branches; 6 - Shaft ofphalanx; Body ofphalanx; 7 - Extensor digitorum; Tendon; 8 - Dorsal digital branches; 9 - Flexor digitorum profundus; Tendon; 10 - Proper palmar digital arteries; 11 - Tendon sheath

Рис. 475. Поперечный распил пальца на уровне средней фаланги:

1 - Flexor digitorum profundus; Tendon; 2 - Proper palmar digital nerves; 3 - Mesotendon; 4 - Shaft of phalanx; Body of phalanx; 5 - Periosteum; 6 - Proper palmar digital arteries; 7 - Tendon sheath

Рис. 476. Области и линии разрезов кожи нижних конечностей (синяя линия очерчивает границы областей, красная линия очерчивает разрезы кожи, наиболее удобные для обнаружения препарируемых мышц) (А - вид спереди, Б - вид сзади):

1 - Dorsal surfaces of toes; 2 - Dorsum of foot; Dorsal region of foot; 3 - Heel region; 4 - Anterior talocrural region; Anterior ankle region; 5 - Anterior region of leg; 6 - Anterior region of knee; 7 - Anterior region of thigh; 8 - Sacral region; 9 - Gluteal region; 10 - Perineal region; 11 - Posterior region of thigh; 12 - Posterior region of knee; 13 - Posterior region ol leg; 14 - Posterior talocrural region; Posterior ankle region; 15 - Sole; Plantar region; 16 - Plantar surfaces of toes



Рис. 477. Мышцы нижней конечности, правой, вид спереди:

1 - Superior extensor retinaculum; 2 - Fibularis brevis; Peroneus brevis; 3 - Tibialis anterior; 4 - Fibularis longus; Peroneus longus; 5 - Quadriceps femoris; 6 - Adductor longus; 7 - Pectineus; 8 - Tensor fasciae latae; Tensor of fascia lata; 9 - Sartorius; 10 - Iliopsoas; 11 - Gracilis; 12 - Gastrocnemius, medial head; 13 - Soleus; 14 - Extensor digitorum longus; 15 - Extensor hallucis longus; Tendon; 16 - Inferior extensor retinaculum

Рис. 478. Мышцы нижней конечности, правой, вид сзади:

1 - Gastrocnemius; 2 - Semitendinosus; 3 - Semimembranosus; 4 - Gluteus maximus; 5 - Iliotibial tract; 6 - Biceps femoris; 7 - Popliteal fossa; 8 - Calcaneal tendon

Рис. 479. Подвзошно-поясничная мышца, вид спереди:

1 - Pubic symphysis; 2 - Ischial spine; 3 - Iliopectineal arch; 4 - Iliopsoas; 5 - Sacrotuberous ligament; 6 - Iliacus; 7 - Psoas major; 8 - Rib [XII]; 9 - Psoas minor; 10 - Vertebra [LV]; 11 - Promontory; 12 - Iliac crest; 13 - Anterior superior iliac spine; 14 - Inguinal ligament; 15 - Sacrospinous ligament; 16 - Greater trochanter; 17 - Intertrochanteric line; 18 - Lesser trochanter; 19 - Pubic tubercle

Рис. 480. Внутренние мышцы таза, вид изнутри, слева:

1 - Adductor magnus; 2 - Inferior pubic ramus; 3 - Gracilis; 4 - Rectus femoris; 5 - Adductor longus; 6 - Tendinous arch of levator ani; 7 - Femoral artery; 8 - Pubic symphysis; 9 - Sartorius; 10 - Obturator canal; 11 - Lacunar ligament; 12 - Obturator nerve, artery and veins; 13 - Iliopectineal arch; 14 - External iliac artery; External iliac vein; 15 - Inguinal ligament; 16 - Femoral nerve; 17 - Anterior superior iliac spine; 18 - Lateral cutaneous nerve of thigh; Lateral femoral cutaneous nerve; 19 - Genitofemoral nerve, femoral branch; 20 - Superior pubic ramus; 21 - Iliacus; 22 - Iliac crest; 23 - Psoas minor; Tendon; 24 - Psoas major; 25 - Lumbar vertebra [LV]; 26 - Vertebral canal; 27 - Sacro-iliac joint; Anterior sacro-iliac ligament; 28 - Pecten pubis; Pectineal line; 29 - Sacrum [sacral vertebrae SI-SV]; 30 - Sacral canal; 31 - Suprapiriform foramen; 32 - Anterior sacral foramina; 33 - Piriformis; 34 - Infrapiriform foramen; 35 - Ischiococcygeus; Coccygeus; 36 - Obturator fascia; 37 - Lesser sciatic foramen; 38 - Sacrotuberous ligament; 39 - Obturator internus; 40 - Ischial tuberosity; 41 - Ramus; 42 - Biceps femoris, long head; 43 - Gluteus maximus; 44 - Semimembranosus; 45 - Semitendinosus



Рис. 481. Внутренние мышцы таза и некоторые мышцы диафрагмы таза, вид изнутри, слева:

1 - Urogenital hiatus; 2 - Iliococcygeus; 3 - Pubic symphysis; 4 - Obturator canal; 5 - Tendinous arch of levator ani; 6 - Obturator internus; 7 - Ischial spine; 8 - Piriformis; 9 - Anterior superior iliac spine; 10 - Iliac crest; 11 - Sacro-iliac joint; 12 - Posterior superior iliac spine; 13 - Ala; Wing; 14 - Sacrum [sacral vertebrae SI-SV]; 15 - Ischiococcygeus; Coccygeus; 16 - Coccyx [coccygeal vertebrae CoI-CoIV];17 - Puborectalis; 18 - Anal aperture; 19 - Pubococcygeus

Рис. 482. Внутренняя запирательная и грушевидная мышцы (А -вид изнутри, слева, Б - вид сзади):

1 - Pubic symphysis; 2 - Pubic tubercle; 3 - Obturator canal; 4 - Obturator internus; 5 - Greater sciatic foramen; 6 - Anterior superior iliac spine; 7 - Iliac crest; 8 - Posterior superior iliac spine; 9 - Piriformis; 10 - Sacrum [sacral vertebrae SI-SV]; 11 - Sacrospinous ligament; 12 - Coccyx [coccygeal vertebrae CoI-CoIV]; 13 - Lesser sciatic foramen; 14 - Sacrotuberous ligament; 15 - Posterior sacral foramina; 16 - Posterior sacro-iliac ligament; 17 - lliofemoral ligament; 18 - Ischiofemoral ligament; 19 - Greater trochanter; 20 - Obturator inter-

nus; Tendon; 21 - Lesser trochanter

Рис. 483. Большая ягодичная мышца и подвздошно-большеберцовый тракт, вид сзади:
